MinuteMan Max Ride 20 -Industrial Grade- Ride on Vacuum Sweeper

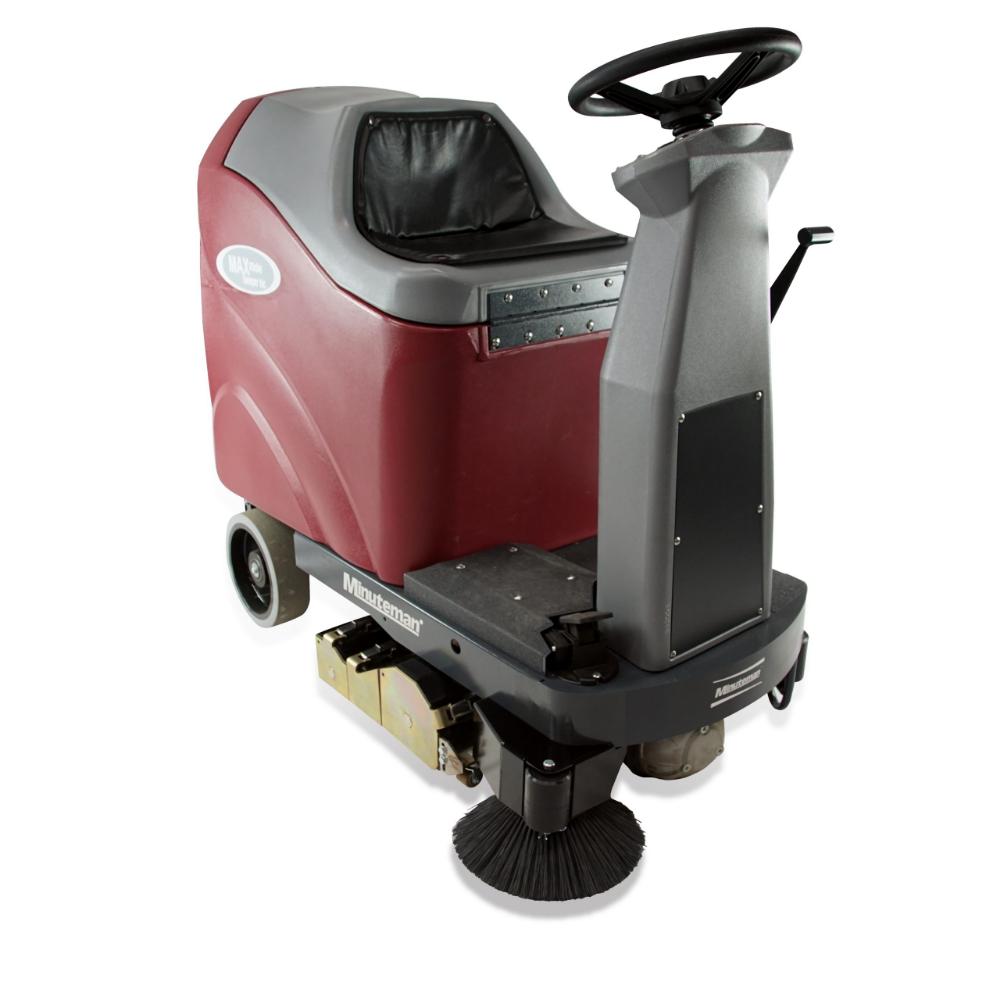

MinuteMan Max Ride 20 Vacuum Sweeper

General Overview:

The MAX Ride 20 is a pioneering compact micro rider scrubber designed to deliver the robustness of larger rider models.

Constructed with a highly durable e-coated steel frame and equipped with generously sized solution and recovery tanks, it enhances efficiency while providing excellent value.

Its advanced design, featuring a distinctive squeegee assembly positioned close to the brush, ensures superior water pickup performance.

Key Features:

The Minute Man Max Ride 20 features automatic loading and unloading of the brush or pad driver, along with an integrated on-board charger.

It offers exceptional maneuverability with the ability to rotate 360 degrees on its axis, ensuring thorough floor cleaning.

Equipped with 18-gallon solution and recovery tanks, its squeegee is positioned beneath the unit and moves in sync with the brush or pad driver for comprehensive water pickup.

Specifications:

Model: MAX Ride 20

Scrub Head Type: Disc

Scrub Path: 20 in (53 cm)

Solution Capacity: 18 gal (68L)

Recovery Capacity: 18 gal (68L)

Max Speed: 3.1 mph (5 kph)

Max Productivity: 27,200 sq. ft/hr (2527 sq m/hr)

Actual Productivity: 22,015 sq. ft/hr (2045 sq m/hr)

Brush Pressure: Floating-Locked

Brush Speed: 200-350-450 RPM

Brush Motor: 600 watt

Vacuum Motor: 550 watts

Vacuum Airflow: 69 cfm (32.4 L/sec)

Vacuum Waterlift: 68” H₂O (1717 mm H₂O)

Sound Pressure: 68 dba

Water Flow: 0.45 gpm (1.7 L/min)

Minimum Turn-Around Aisle Width: 50.5” (1283 mm)

Maximum Ramp Climbing: 6%

Squeegee Width: 25” (635 mm)

Machine Voltage: 24 VDC

Power Source: Battery (2) 12V 140 AH

Battery Charger: On Board

Maximum Run Time: 3–3.5 hrs

Dimensions with Squeegee: 47.5” L x 25.5” W x 45” H (1206 mm x 648 mm x 1143 mm)

Weight Without Batteries: 342 lbs (155 kg) – No Solution

Weight With Batteries: 691 lbs (313 kg) – Full Solution and 140 AH battery pack

Approvals: None

IP Protection Class: IPX4
