Mi-T-M HSP-3504-3MGV | 3500 PSI-3.3 GPM Gas Hot Water Pressure Washer

by Mi-T-M
Save $560.00
Original Price $6,797.00
Current Price $6,237.00

Notify me when back in stock

Veteran Owned Badge No Hidden Fees Badge Authorized Dealer Badge Manufacturer Warranty Badge Free Shipping Badge
Every job is different. Let’s talk about yours - Call Now.
Phone Icon
Call / Text: (910) 218-9010
Email Icon
Email: sales@americancleaningequipment.com
Chat Icon
Chat: Click "Message Us" in the lower right to chat now!
Sales tax will be applied to all North Carolina orders.
Description

Mi-T-M HSE Series Electric Belt Drive Hot Water HSP-3504-3MGV

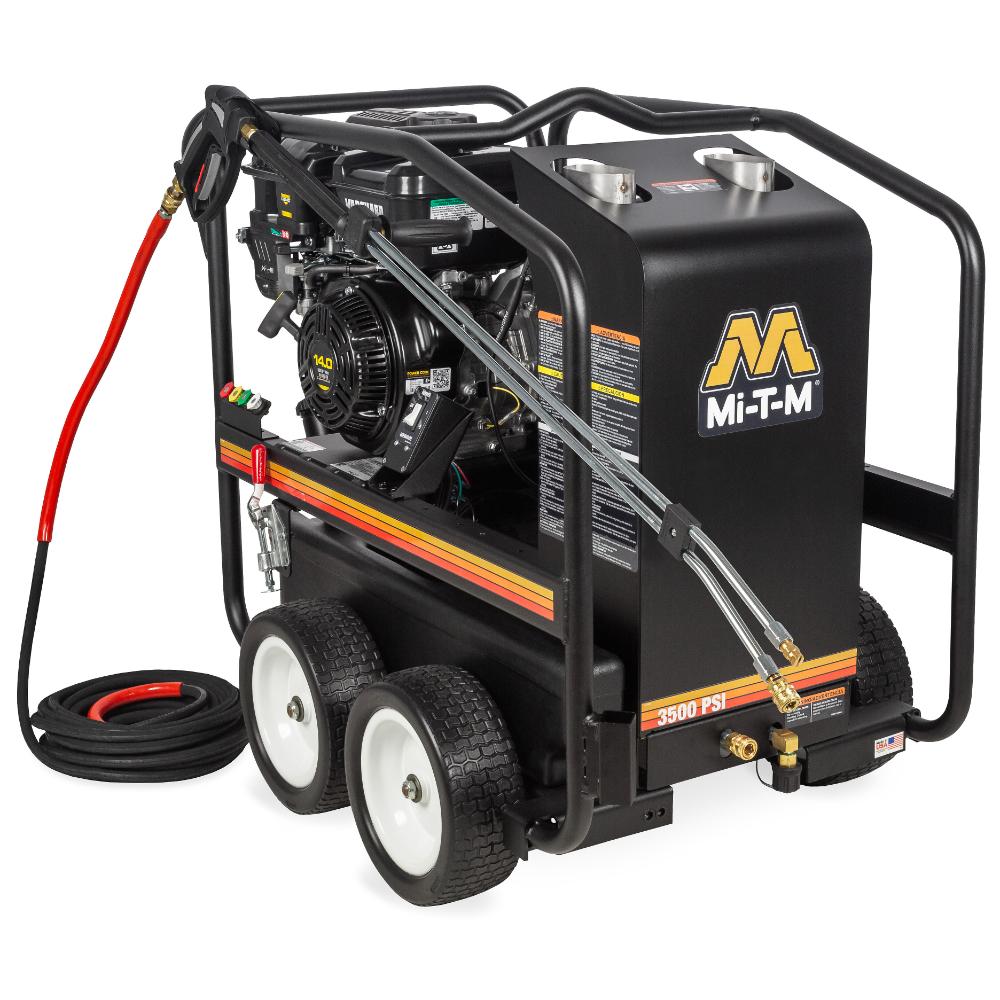

Mi-T-M HSP-3504-3MGV

Conquer stubborn dirt and grime with the Mi-T-M HSP Series pressure washer. Powered by a robust 408cc Vanguard OHV engine and an AR pump with direct drive transmission, it delivers dependable, long-lasting performance.

Generating up to 3,500 PSI and 3.3 GPM, this machine has the strength to tackle the toughest stains. It includes a 50' steel wire-braided hose, an insulated dual lance with trigger gun, and four quick-connect nozzles offering spray angles from 0 to 40 degrees for versatile cleaning.

Equipped with a patented EMF system, this pressure washer efficiently removes grease and oils from various surfaces. Its powerful heat exchanger and diesel- or kerosene-fired burner deliver superior cleaning performance compared to standard cold water models.

Operating at 294,000 BTU per hour and 2.14 GPH, it raises water temperature by 150°F, reaching a maximum of 200°F. With a 1.51-gallon engine fuel tank and a 5.5-gallon burner fuel tank, it offers extended runtime to keep your cleaning tasks running smoothly and effectively.

Built for durability, this pressure washer features a sturdy, powder-coated steel frame with a center balanced lift designed to handle tough jobs. Its portability is enhanced by four 13" flat-free tires, allowing effortless movement across your worksite. The pump includes an external bypass and a factory-set unloader valve to prevent overheating and excessive pressure.

Plus, a low-pressure detergent injector is included for effective cleaning with soap. Elevate your cleaning performance with the reliable HSP Series pressure washer!

Kit Includes:

- Mi-T-M HSP Series pressure washer

- 50' hose

- Dual lance with trigger gun

- (4) Quick connect nozzles

Mi-T-M HSE-2504-0M10


Additional Options

Options

Options - must be ordered with unit and cannot be added later.

HX-0274 Rain Cap

Protects boiler from moisture build-up when unit is left outside

HX-0279 Hour Meter

Displays the number of hours unit has been in operation

HX-0280 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 98°-248°F

HX-0281 Hour Meter / Adjustable Thermostat

Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F

HX-0300 Skid Feet

Stationary applications

HX-0303 Electric Start - Sealed Battery Included

For easy starting



Mi-T-M HSP-3504-3MGV Manual

Mi-T-M HSP-3504-3MGV Manual

Mi-T-M HSP-3504-3MGV Manual


Specifications
PSI 3500
GPM 3.3
Horsepower/Engine 408cc Vanguard OHV
Pump AR
Engine Fuel Tank Capacity 1.51 gallon
Burner Fuel Tank Capacity 5.5 gallon
Burner Fuel Cons. 2.14 gph
BTU Per Hour 294,000
Net Weight 428.00 lbs.
Length 43.00 in.
Width 30.00 in.
Height 41.00 in.
