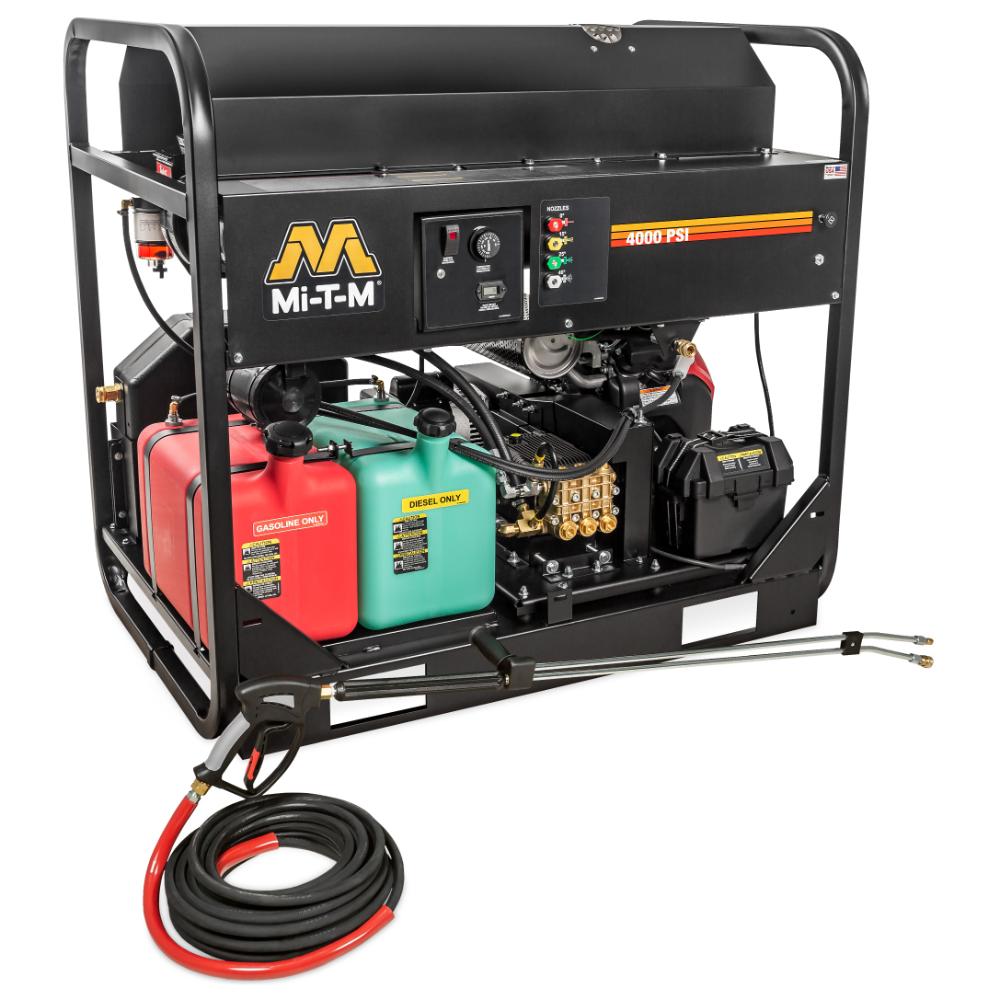

Mi-T-M-HS-4004-1MAH pressure washer with fuel tanks and hose on a white background

Mi-T-M HS-4004-1MAH | 4000 PSI-4.0 GPM Gas Hot Water Belt Drive Pressure Washer | Honda Engine

by Mi-T-M
Save $1,102.00
$12,997.00
$11,895.00

Notify me when back in stock

Veteran Owned Badge No Hidden Fees Badge Authorized Dealer Badge Manufacturer Warranty Badge Free Shipping Badge
Every job is different. Let’s talk about yours - Call Now.
Phone Icon
Call / Text: (910) 218-9010
Email Icon
Email: sales@americancleaningequipment.com
Chat Icon
Chat: Click "Message Us" in the lower right to chat now!
Sales tax will be applied to all North Carolina orders.
Description

Mi-T-M HS Series Gasoline Belt Drive Hot Water HS-4004-1MAH

Mi-T-M HS-4004-1MAH

The HS Series can be mounted on a trailer or truck bed, making it easy to move your mobile cleaning system from one jobsite to another. Effortlessly power through grease, oil, heavy mud, and grime wherever you need.

Pump

External bypass system protects from heat build-up

Factory preset unloader

Forged brass manifold

80-mesh, high volume, stainless-steel screen inlet water strainer

Engine

Electric start - sealed battery included

Frame

Heavy-duty powder coated steel frame

Components

2900-watt generator

Heavy-duty dual cogged belt drive system

No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous

Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes

Quick connect nozzles – 0°, 15°, 25° and 40°

50-foot x 3/8-inch steel wire-braided hose

Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Model equipped with trapping unloader, all other models equipped with K7 flow actuated unloader.

 Mi-T-M HS-4004-1MAH

Additional Options

Options

Options - must be ordered with unit and cannot be added later.

HX-0130 Three-way Ball Valve

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

HX-0142 Steam Combination 250°F

Increases outlet temperature to 250°F

HX-0145 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 86°F-248°F

HX-0146 Hour Meter

Displays the number of hours unit has been in operation

HX-0147 Four Point Lifting Capability

Allows unit to be lifted by crane

HX-0148 Adjustable Detergent Valve

Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

Mi-T-M HS-4004-1MAH Manual

Mi-T-M HS-4004-1MAH Manual

 Mi-T-M HS-4004-1MAH Manual
Specifications
PSI 4000
GPM 4.0
Displacement/ Engine 688cc Honda GX630 OHV
Pump AR
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallons
Burner Fuel Cons. 2.76 gph
BTU Per Hour 386,400
Net Weight 750.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.
