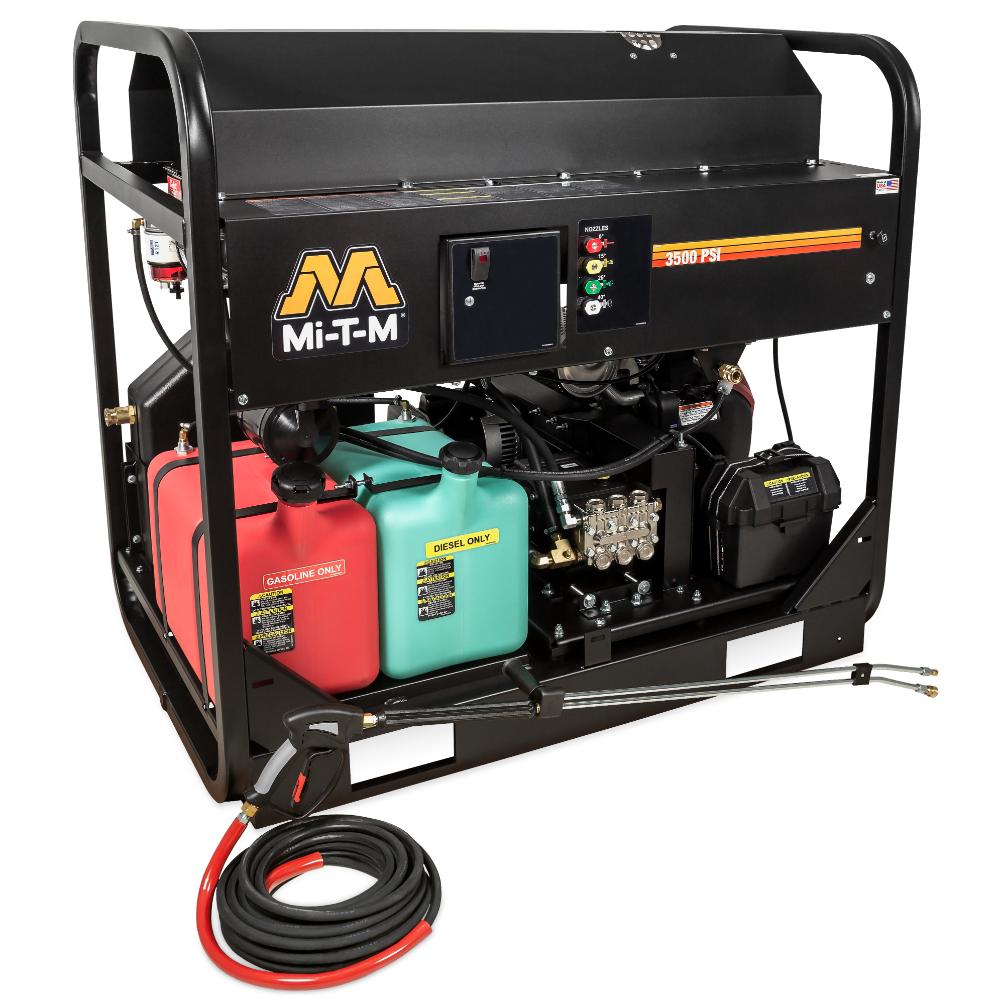

Mi-T-M HS-3505-1MGM | 3500 PSI-4.7 GPM Gas Hot Water Belt Drive Pressure Washer | Mi-T-M Engine
Mi-T-M HS-3505-1MGM | 3500 PSI-4.7 GPM Gas Hot Water Belt Drive Pressure Washer | Mi-T-M Engine
Regular price
$9,685.00
Regular price
-8%
$10,497.00
Sale price
$9,685.00
Free shipping (Over $100)
Taxes included in Price
Made In the U.S.A
Ask an expert!
Mi-T-M HS Series Gasoline Belt Drive Hot Water HS-3505-1MGM
Mi-T-M HS-3505-1MGM
The HS Series can be mounted on a trailer or truck bed, making it perfect for mobile cleaning across multiple jobsites.
Effortlessly remove grease, oil, heavy mud, and grime wherever you go.
Pump
External bypass system protects from heat build-up
Factory preset unloader
Forged brass manifold
80-mesh, high volume, stainless-steel screen inlet water strainer
Engine
Electric start - sealed battery included
Frame
Heavy-duty powder coated steel frame
Components
2900-watt generator
Heavy-duty dual cogged belt drive system
No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
1/2-inch schedule 80-coil with stainless-steel wrap
Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40°
50-foot x 3/8-inch steel wire-braided hose
Adjustable pressure insulated dual lance with trigger gun
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Model equipped with trapping unloader, all other models equipped with K7 flow actuated unloader.
Additional Options
Options
Options - must be ordered with unit and cannot be added later.
HX-0130 Three-way Ball Valve
Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
HX-0131 High Pressure Detergent Injector, K7
Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only
HX-0133 Steam Combination 250°F, K7
Increases outlet temperature to 250°F. Steam option for models equipped with K7 flow actuated unloaders
HX-0139 Steam Combination 250°F
Increases outlet temperature to 250°F **Requires trapping unloader. Consult factory before ordering this option**
HX-0145 Adjustable Thermostat
Operator is able to adjust outlet water temperature between 86°F-248°F
HX-0146 Hour Meter
Displays the number of hours unit has been in operation
HX-0147 Four Point Lifting Capability
Allows unit to be lifted by crane
HX-0148 Adjustable Detergent Valve
Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**
HX-0200 Trapping Unloader
For longer hose runs and cleaning elevated areas
Specifications
| PSI | 3500 |
| GPM | 4.7 |
| Displacement/ Engine | 670cc Mi-T-M OHV |
| Pump | General |
| Engine Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Cons. | 3.37 gph |
| BTU Per Hour | 471,800 |
| Net Weight | 750.00 lbs. |
| Length | 50.00 in. |
| Width | 34.00 in. |
| Height | 46.00 in. |
