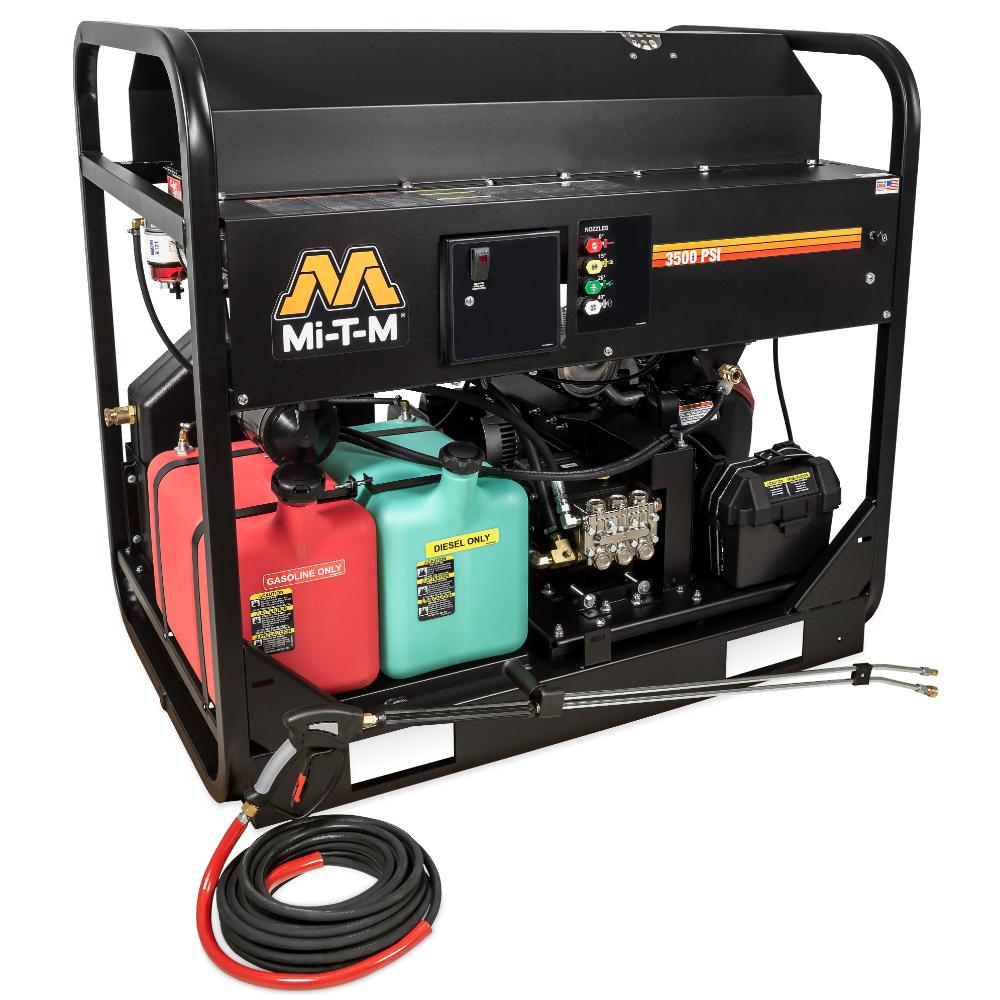

Mi-T-M-HS-3505-1MGK generator with fuel tanks and hoses on a white background

Mi-T-M HS-3505-1MGK | 3500 PSI-4.7 GPM Gas Hot Water Belt Drive Pressure Washer | Kohler Engine

by Mi-T-M
Save $1,000.00
$11,997.00
$10,997.00

Notify me when back in stock

Veteran Owned Badge No Hidden Fees Badge Authorized Dealer Badge Manufacturer Warranty Badge Free Shipping Badge
Every job is different. Let’s talk about yours - Call Now.
Phone Icon
Call / Text: (910) 218-9010
Email Icon
Email: sales@americancleaningequipment.com
Chat Icon
Chat: Click "Message Us" in the lower right to chat now!
Sales tax will be applied to all North Carolina orders.
Description

Mi-T-M HS Series Gasoline Belt Drive Hot Water HS-3505-1MGK

Mi-T-M HS-3505-1MGK

The HS Series can be mounted on a trailer or truck bed, making it perfect for mobile cleaning across multiple jobsites.

Effortlessly remove grease, oil, heavy mud, and grime wherever you go.

Pump

External bypass system protects from heat build-up

Factory preset unloader

Forged brass manifold

80-mesh, high volume, stainless-steel screen inlet water strainer

Engine

Electric start - sealed battery included

Frame

Heavy-duty powder coated steel frame

Components

2900-watt generator

Heavy-duty dual cogged belt drive system

No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous

Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes

Quick connect nozzles – 0°, 15°, 25° and 40°

50-foot x 3/8-inch steel wire-braided hose

Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Model equipped with trapping unloader, all other models equipped with K7 flow actuated unloader.

 Mi-T-M HS-3505-1MGK

Additional Options

Options

Options - must be ordered with unit and cannot be added later.

HX-0130 Three-way Ball Valve

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

HX-0131 High Pressure Detergent Injector, K7

Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only

HX-0133 Steam Combination 250°F, K7

Increases outlet temperature to 250°F. Steam option for models equipped with K7 flow actuated unloaders

HX-0139 Steam Combination 250°F

Increases outlet temperature to 250°F **Requires trapping unloader. Consult factory before ordering this option**

HX-0145 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 86°F-248°F

HX-0146 Hour Meter

Displays the number of hours unit has been in operation

HX-0147 Four Point Lifting Capability

Allows unit to be lifted by crane

HX-0148 Adjustable Detergent Valve

Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

HX-0200 Trapping Unloader

For longer hose runs and cleaning elevated areas

Mi-T-M HS-3505-1MGK Manual

Mi-T-M HS-3505-1MGK Manual

 Mi-T-M HS-3505-1MGK Manual
Specifications
PSI 3500
GPM 4.7
Displacement/ Engine 674cc Kohler CH640 OHV
Pump General
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 750.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.
