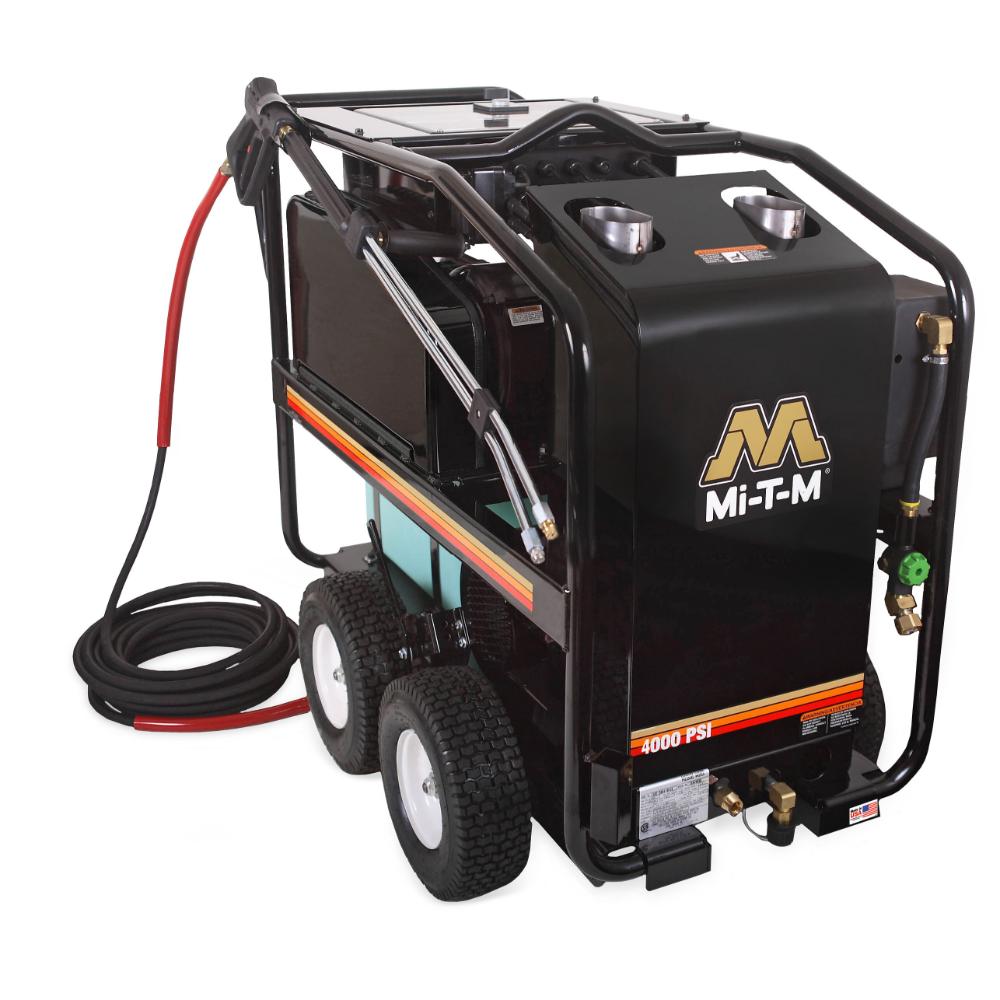

Mi-T-M HSE Series Electric Belt Drive Hot Water HSE-4004-0M10
Mi-T-M HSE Series Electric Belt Drive Hot Water HSE-4004-0M10
Regular price
$9,197.00
Regular price
-8%
$9,997.00
Sale price
$9,197.00
Free shipping (Over $100)
Taxes included in Price
Made In the U.S.A
Ask an expert!
Mi-T-M HSE Series Electric Belt Drive Hot Water HSE-4004-0M10
Mi-T-M HSE-4004-0M10
The HSE Series is favored by contractors for its dependable efficiency, durability, and long-lasting performance. Its heavy-duty construction makes it perfect for eliminating greasy residue and debris on industrial and commercial job sites.
Pump
External bypass system protects from heat build-up
Factory preset unloader
Forged brass manifold
Thermal relief valve
High pressure detergent injector
Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection
35-foot power cord
Frame
Reinforced powder coated steel frame with center balanced lift
13-inch flat-free tires
Components
Energy-efficient top-fired heat exchanger
No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F
Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40°
50-foot x 3/8-inch steel wire-braided hose
Adjustable pressure insulated dual lance with trigger gun
Additional Options
Options
Options - must be ordered with unit and cannot be added later.
HX-0070 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
HX-0073 Auto Start/Stop - Steam
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
HX-0074 Auto Start/Stop - CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
HX-0077 Auto Start/Stop - Steam - CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
HX-0087 460V on 10.0 HP, 3 Phase Models
Upgrades 230V, 3-phase models to operate at 460V, 3-phase
HX-0088 Skid Feet
Stationary applications
HX-0161 Hour Meter
Displays the number of hours unit has been in operation
HX-0294 Adjustable Thermostat
Operator is able to adjust outlet water temperature between 86°-248°F
Specifications
| PSI | 4000 |
| GPM | 3.5 |
| Displacement/ Engine | 10.0 HP, 230V, 1Ø, 39.0A |
| Pump | General |
| Plug Type | NEMA 6-50P |
| Burner Fuel Tank Capacity | 10.0 gallons |
| Burner Fuel Cons. | 2.10 gph |
| BTU Per Hour | 294,000 |
| Net Weight | 631.00 lbs. |
| Length | 49.50 in. |
| Width | 28.00 in. |
| Height | 40.50 in. |
