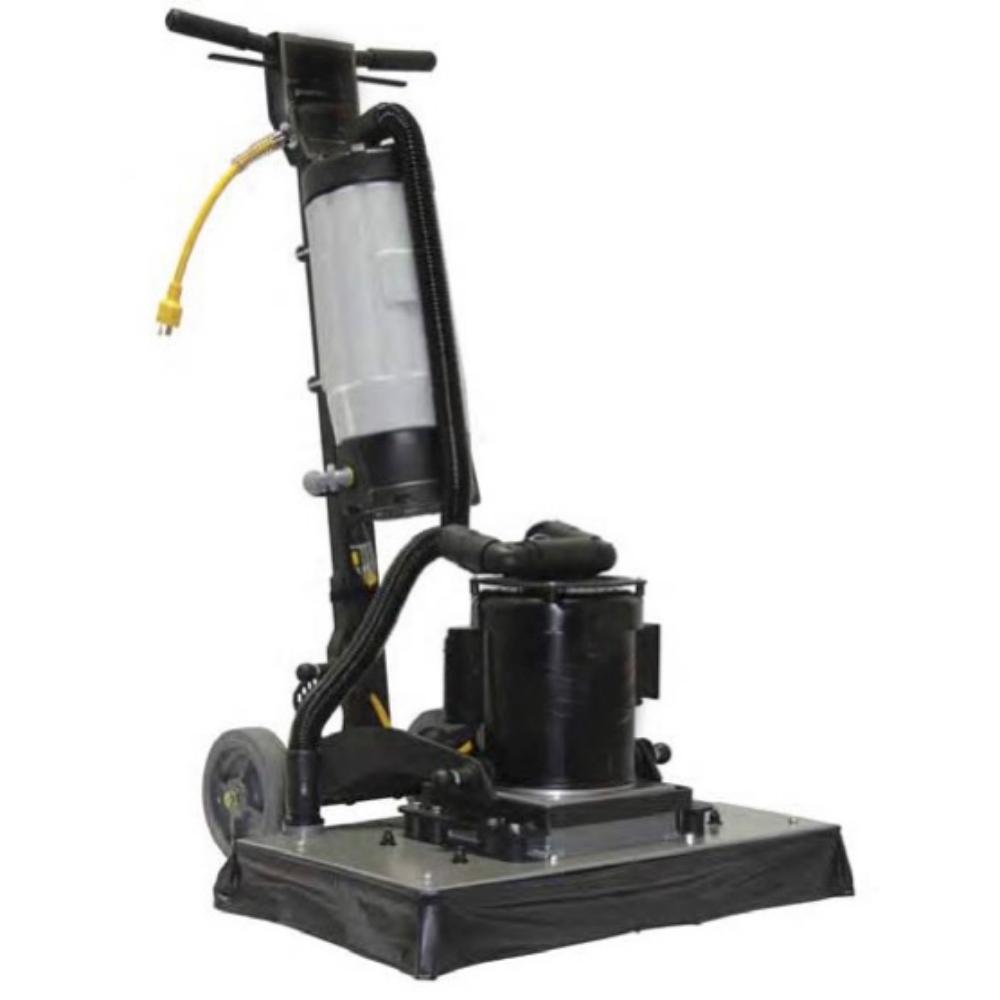

Minute Man Orbit 20 and 28 Pro Plus
The Minute Man Orbit 20 Pro Plus features a 1.5 HP, 180 frame TEFC dual capacitor AC motor operating at 115-230V, 60 Hz, delivering 1740 RPM through an eccentric balanced drive pad design.
It includes a 50 ft. (12-3) two-piece industrial power cord with twist lock and a dual vibration isolation system with industrial isolators for smooth operation.
The heavy-duty powder-coated steel handle offers a 5-position pin lock and is removable for easy transport and storage.
Additional features include a motor guard, thumb-operated safety switch, dual steel triggers, vinyl-dipped foam grips, and 2″ x 8″ non-marking ball bearing wheels.
Comes with a transport cart and drip tray. Optional accessories include an Active Vacuum Kit with a 6-quart tank and dust skirt, an Osprey Sprayer System with a motor-mounted pump and 4-gallon tank, and Dust Control.
Quiet operation at 60 dB meets GS42 standards and is UL/CUL listed.
Specifications:
TH20
Pad Size: 20" x 14"
Pad Speed: 1740 RPM
Amp Draw: 7.1 Amp
Weight: 250 lbs
Pad Pressure: 0.89 lb/sq in
Vibration Isolators: 6 Primary / 8 Secondary
TH28
Pad Size: 28" x 14"
Pad Speed: 1740 RPM
Amp Draw: 7.8 Amp
Weight: 305 lbs
Pad Pressure: 0.79 lb/sq in
Vibration Isolators: 8 Primary / 8 Secondary
Shared Specifications:
-
Motor: 1.5 HP, 180 Frame, TEFC Dual Capacitor AC
-
Power Source: 115-230V, 60 Hz
-
Power Cord: 50 ft. (12-3), 2-Piece Industrial w/ Twist Lock
-
Drive System: Eccentric Balanced Orbital Drive
-
Sound Level: 60 dB (meets GS42 Standard)
